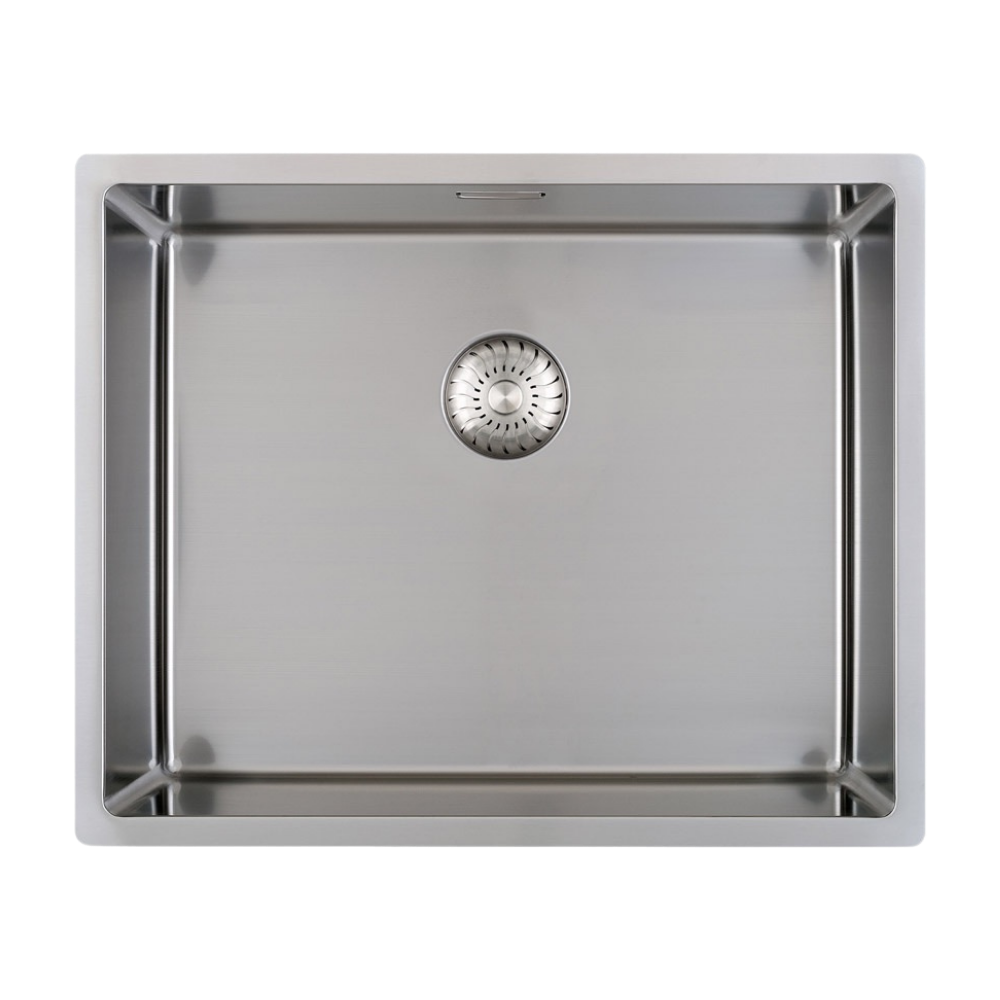

CAPP50R10
708017
Inset/under-/flushmount (HPL), St.Steel

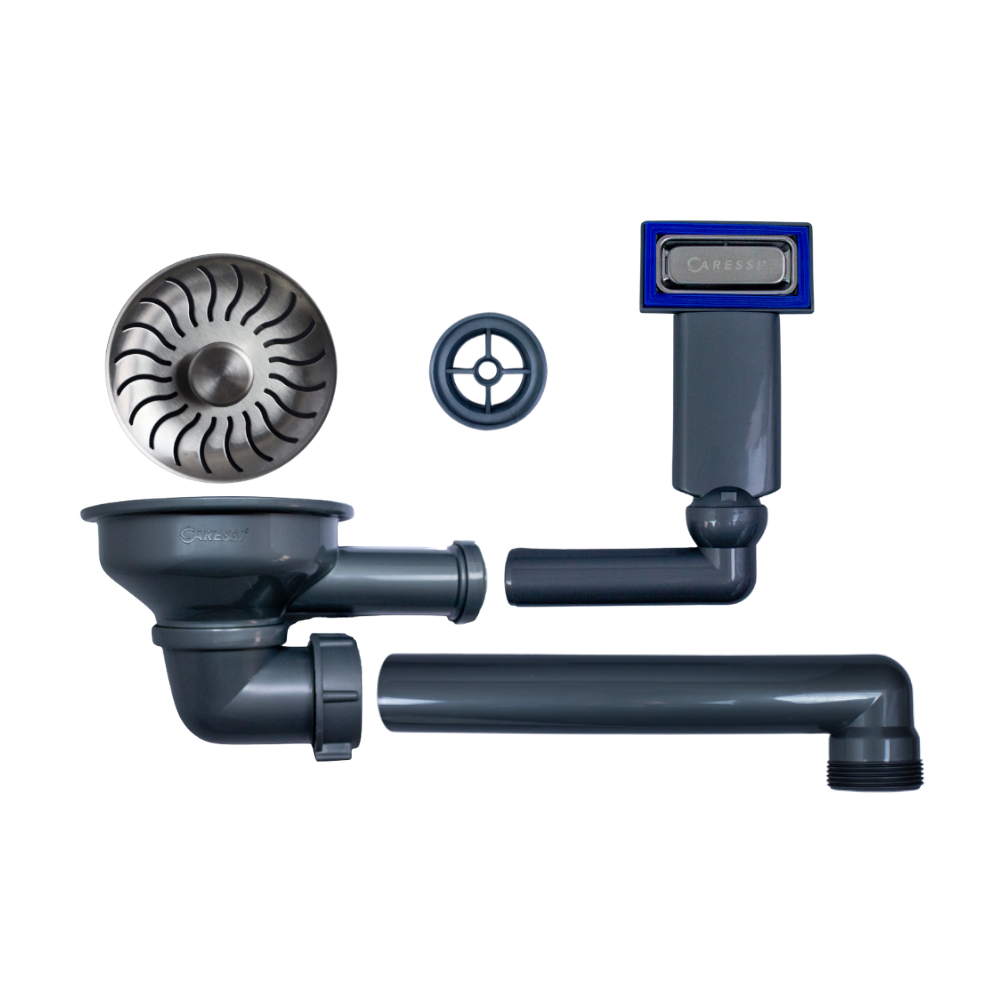

Stainless steel, depth 185mm, including manual waste kit with design overflow and clamps. Dimensions (WxD): internal: 500x400mm, external: 540x440mm.
- Description
- Properties
- Features Manufacturer
- Documents
- Certificates
- Videos
- Manuals
- Drawings
- Deeplink
- Downloads
- Alternative
- Matching product
Stainless steel, depth 185mm, including manual waste kit with design overflow and clamps. Dimensions (WxD): internal: 500x400mm, external: 540x440mm.
Technical specifications
Number of sinks:
1
Categories:
Caressi
Colour:
St.Steel
Outer dimensions in mm:
540x440
Internal dimensions in mm:
500x400
Radius internal:
R10
Radius External:
R10
Number of drainers/discharge points:
1
Width in mm:
540
Depth in mm:
185
Manufacturer's warranty:
2 Years
Height in mm:
440
Includes overflow:
Yes
Material:
St.Steel (AISI 304)
With waste kit:
Yes
Minimum cabinet width in mm:
600
Mounting method:
Flush-, under and top mount
Gross weight:
6,50 kg
Net weight:
6,50 kg
Package dimensions (LxWxH) in mm:
590x480x270
Series:
CAPPR10
Type:
Single
Shape:
Rectangular
Flange thickness in mm:
1
Verpakking (L) Lengte:
590
Verpakking (B) Breedte:
480
Verpakking (H) Hoogte:
270
